The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one
box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes
Descripción
Introduction

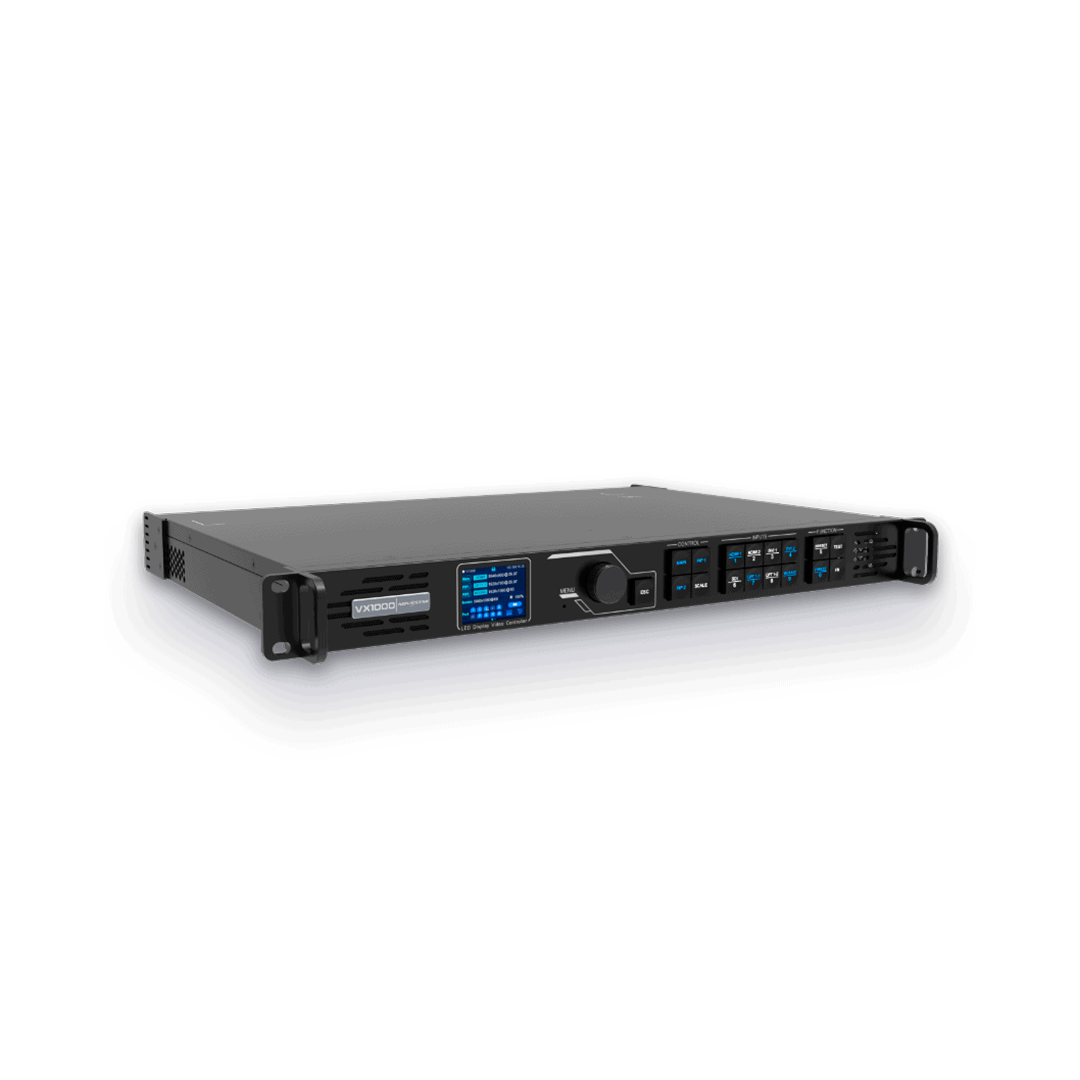

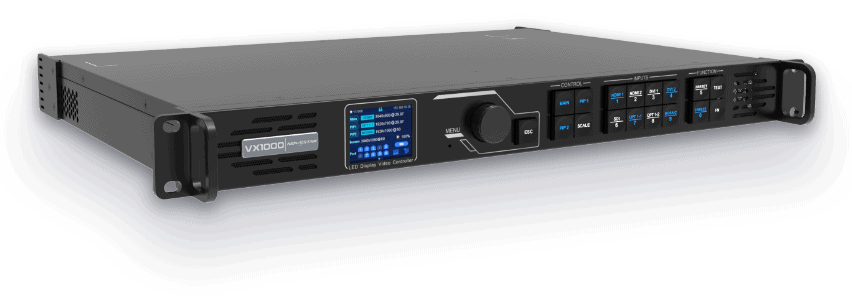

The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one
box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A
VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and
8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications.
The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz
images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and
chroma calibration and more, to present you with an excellent image display experience.
What’s more, the VX1000 can work with NovaStar’s supreme software NovaLCT and V-Can to greatly facilitate
your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer
management, preset management and firmware update.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can
be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED
screens.
Features

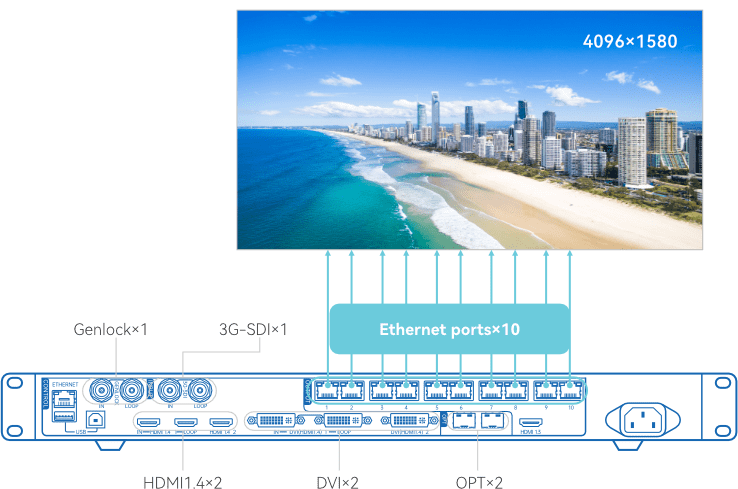

Input connectors
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1x DVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)
Output connectors
− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million
pixels, with a maximum width of 10,240
pixels and a maximum height of 8192
pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet
ports.
OPT 2 copies or backs up the output on 10
Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
Self-adaptive OPT 1 for either video input or
sending card output
Thanks to the self-adaptive design, OPT 1 can
be used as either an input or output connector,
depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI input
source
− Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receiving
card to 20 lines when the low latency function
and Bypass mode are both enabled.
3x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source or external Genlock
can be used as the sync source to ensure the
output images of all cascaded units in sync.
Powerful video processing
− Based on SuperView III image quality
processing technologies to provide stepless
output scaling.
− One-click full screen display
− Free input cropping
Easy preset saving and loading
− Up to 10 user-defined presets supported
− Load a preset by simply pressing one
button
Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
− Backup between input sources
Mosaic input source supported
The mosaic source is composed of several
input connectors of the same type.
Up to 4 units cascaded for image mosaic

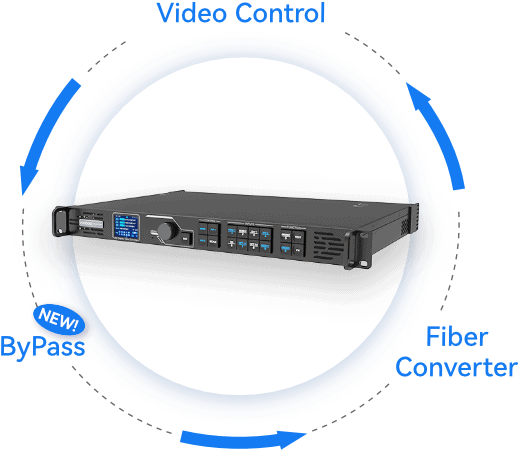

Three working modes
− Video Controller
− Fiber Converter
− Bypass
All-round color adjustment
